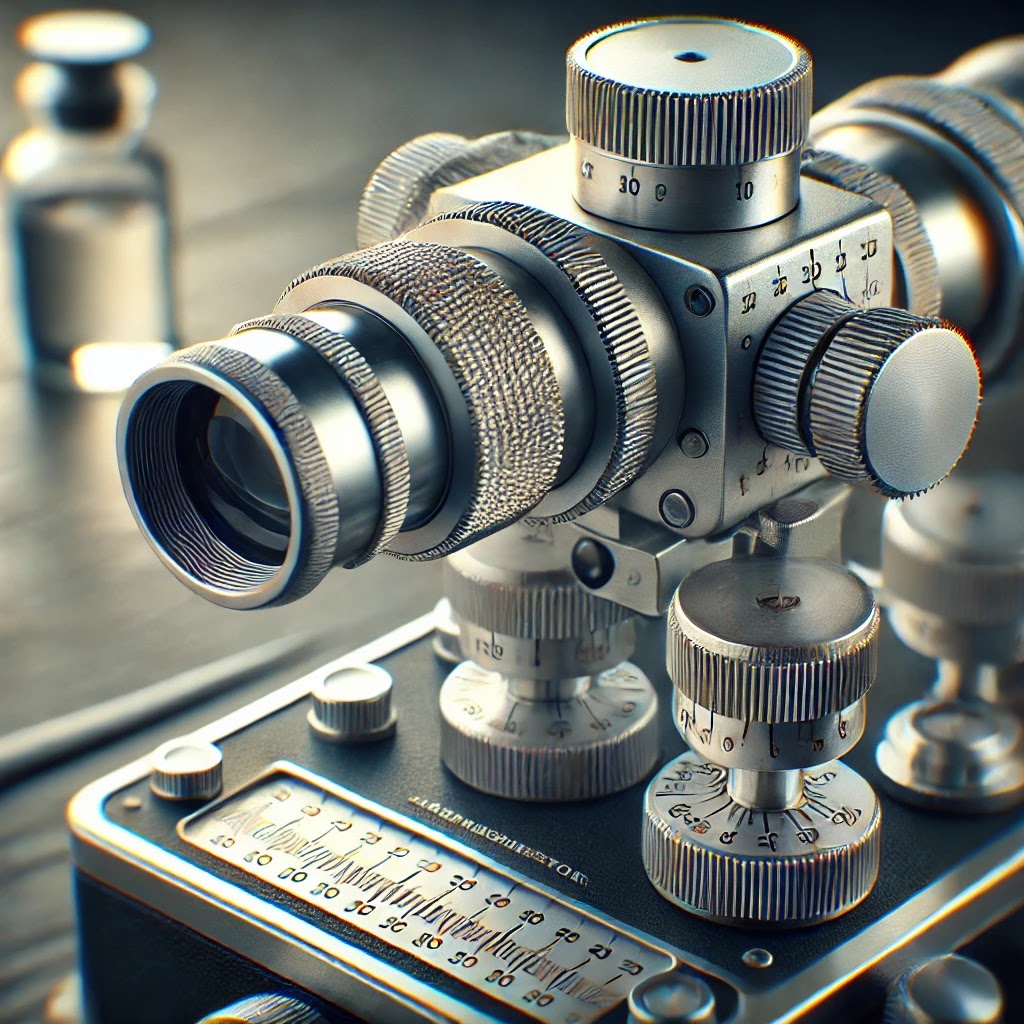

Abbe's Refractometer

 Introduction:

• Abbe's refractometer, invented by Ernst Abbe in the late 19th century, is a device used to measure the refractive index of liquids and transparent solids.
• The refractive index is a measure of how much light is bent or refracted when it enters a material.

Components:

1. Prism Assembly:
   • Consists of two prisms: the illuminating prism and the refracting prism.
   • The sample is placed between these two prisms.
2. Light Source:
   • Typically, a monochromatic light source, often sodium light, is used.
   • Modern refractometers might use LEDs.
3. Scale and Reading Mechanism:
   • A scale that is viewed through an eyepiece.
   • The scale typically measures the refractive index directly.
4. Temperature Control:
   • Some models have built-in temperature control because the refractive index can be temperature-dependent.

Principle of Operation:

• Critical Angle and Total Internal Reflection:
  • The device works on the principle of total internal reflection.
  • Light enters the sample and reaches the boundary between the sample and the prism.
  • At a certain angle (critical angle), light is totally internally reflected, which can be observed through the eyepiece.
• Measurement:
  • The refractive index is determined by the angle at which total internal reflection occurs.
  • The scale in the eyepiece helps in directly reading the refractive index.

Procedure:

1. Sample Preparation:
   • Clean the prisms and place a small amount of the sample between them.
2. Illumination:
   • Illuminate the sample using the built-in light source.
3. Observation:
   • Look through the eyepiece and adjust the angle until a sharp boundary line (shadowline) is observed.
4. Reading:
   • Read the refractive index directly from the scale visible through the eyepiece.

Applications:

• Quality Control:
  • Widely used in industries like pharmaceuticals, food and beverage, and chemicals to ensure product consistency and quality.
• Purity Analysis:
  • Can determine the purity of a substance by comparing the refractive index to known values.
• Concentration Measurement:
  • Used to measure the concentration of solutes in solutions, such as sugar content in beverages (Brix scale).
• Research and Development:
  • Essential in R&D for material characterization and analysis.

Advantages:

• Accuracy:
  • Provides highly accurate measurements of refractive index.
• Simplicity:
  • Simple to use with direct reading.
• Versatility:
  • Can be used for a wide range of substances.

Limitations:

• Sample Limitation:
  • Only suitable for transparent or translucent samples.
• Temperature Sensitivity:
  • Measurements can be affected by temperature changes, requiring temperature control.
• Manual Operation:
  • Traditional models require manual operation and interpretation.

Maintenance:

• Cleaning:
  • Regularly clean the prisms to avoid contamination and ensure accurate readings.
• Calibration:
  • Periodically calibrate the refractometer using standard reference materials.

Conclusion:

• Abbe's refractometer is a vital tool in scientific and industrial applications for measuring the refractive index of various substances. Its precision and ease of use make it an indispensable instrument in laboratories and quality control processes.
